Product Name

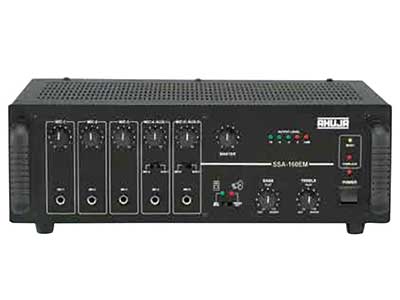

160 WATTS AC & 24V DC Operation

  • 5 Mic & 2 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-160EM to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
CONTACT US
Downloads

Specifications

POWER OUTPUT220W Max., 160W RMS at 10% THD, 140W RMS at 5% THD, 120W RMS at 2% THD
OUTPUT REGULATION≤ 2 dB, no load to full load at 1kHz
INPUT CHANNELS5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ
FREQUENCY RESPONSE50-15,000Hz ±3dB
SIGNAL TO NOISE RATIO60dB
TONE CONTROLSBass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
OUTPUTSPreamp 200mV/600 Ω, Line 1V/1kΩ
SPEAKER OUTPUTS4Ω, 8Ω, 70V & 100V
POWER SUPPLYAC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
POWER CONSUMPTIONAC: 320VA DC: 4A
DIMENSIONSW420 × H155 × D320 mm
WEIGHT13.6kg
